This series designed with unique magnetic circuit has round arc pole for lifting and transporting steel tubes. Compared to other lifting tools like hook or steel wire, it can touch the tube right from the top and be able to load and unload the materials directly, thus it improves working efficiency greatly. At the same time, that it will not touch nerighbouring tube provides a safety operation and engery-saving.

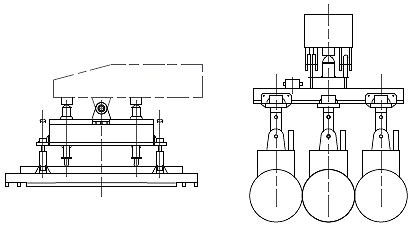

Note: See the above fig. There are three units combination
1. Three pieces of steel tube with diameter less than 32 inches can be lifted at a time;
2. Two pieces of steel tube with diameter more than 32 inches can be lifted through 2 magnets in a row at a time;
3. One piece of steel tube with big diameter can be lifted through the center magnet.

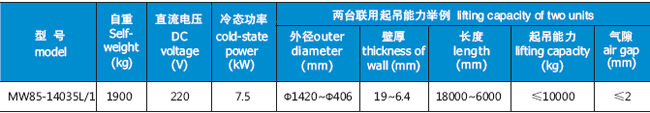

Main technical data (rated voltage DC-220V, duty cycle TD-60%)
