Super-strong permanent magnet belt type separator series RCYD-G which uses rare earth Ne-Fe-B as magnetic source have met, some data are even beyond, the standard of JB/T 8711-1998 with the advantages of stable performance, unique circuit design, strong magnetic force and high gradient. This series can remove 0.1 to 50 kg iron material from non-magnetic ones with an attraction force much stronger than that of international separators. They have drum-shape rolls which are designed to rectify deviation automatically and fullsealed bear bases made by cast steel to ensure no fault occur when working in harsh working conditions for quite a long time. They are widely used in coal industry, port, power plant, cement industry, building industry and so on. We also have an anti-explosion type.

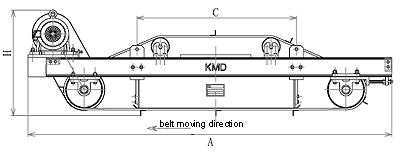

Overall Dimension Drawing

Main Technical Data

Model		Belt Width E (mm)	Rated Hanging Height (mm)	Field Intensity (mT)	Overall dimension (mm)			Hanging Size (mm)		Mass (kg)	Drive Power(kw)
Model		Belt Width E (mm)	Rated Hanging Height (mm)	Field Intensity (mT)	A	B	H	C	D	Mass (kg)	Drive Power(kw)
RCYD-6	G1	650	200	90	2160	1075	795	920	890	1300	2.2
	G2			120	2160	1075	795	920	890	1420	2.2
	G3			150	2320	1075	795	920	890	1750	2.2
RCYD-8	G1	800	250	90	2350	1280	795	1110	1090	1920	2.2
	G2			120	2350	1280	795	1110	1090	2180	3.0
	G3			150	2550	1350	795	1110	1090	2820	3.0
RCYD-10	G1	1000	300	90	2680	1550	950	1350	1340	2350	3.0
	G2			120	2680	1550	950	1350	1340	2700	3.0
	G3			150	2760	1550	950	1350	1340	3680	4.0
RCYD-12	G1	1200	350	90	2900	1730	950	1500	1460	3250	4.0
	G2			120	2900	1730	970	1500	1460	4100	4.0
	G3			150	3100	1750	970	1500	1460	5150	5.5
RCYD-14	G1	1400	400	90	3200	1760	970	1780	1750	4800	4.0
	G2			120	3200	1760	970	1780	1750	5600	5.5
	G3			150	3350	1980	1180	1780	1750	7450	5.5
RCYD-16	G1	1600	450	90	3450	2210	1180	1950	1920	6200	5.5
	G2			120	3450	2210	1180	1950	1920	7750	5.5
	G3			150	3650	2210	1180	1950	1920	10380	7.5
RCYD-18	G1	1800	500	90	3820	2570	1180	2150	2180	8500	7.5
	G2			120	3820	2570	1180	2150	2180	10850	7.5
	G3			150	4050	2570	1250	2150	2180	14800	11.0
RCYD-20	G1	2000	550	90	4300	2670	1180	2450	2400	11500	7.5
	G2			120	4300	2670	1250	2450	2400	14270	11.0
	G3			150	4550	2670	1250	2450	2400	19260	11.0
RCYD-22	G1	2200	600	90	4820	2820	1250	2680	2650	13980	11.0
	G2			120	4820	2820	1250	2680	2650	18350	11.0
	G3			150	4820	2820	1350	2680	2650	25080	15.0
RCYD-24	G1	2400	650	90	5250	3180	1250	3100	2900	18760	15.0
	G2			120	5250	3180	1350	3100	2900	23870	15.0
	G3			150	5250	3180	1350	3100	2900	29960	15.0
