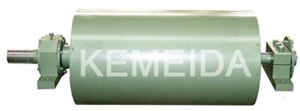

YL1 Permanent magnet wheel
Half magnetic permanent-magnet wheel series YG2 which are usually suitable for purification treatment on powdery, grainy and small material, or iron recovery can protect crusher, muller and mill from damage or wear, featuring simple installation, strong attraction force, no energy consumption, continuous work and simple operation. This series which is designed as per the standard of series TD-75 can satisfy customer’s need of high magnetic induction and deep removing and now are widely applied in metallurgy industry, abrasive industry, corundum industry, nonmetal ore industry, refractory industry, mine industry, food industry, building material industry and etc.

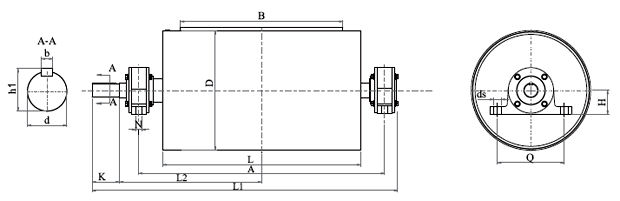

Overall Dimension Drawing
Half magnetic permanent-magnet wheel series YG2 which are usually suitable for purification treatment on powdery, grainy and small material, or iron recovery can protect crusher, muller and mill from damage or wear, featuring simple installation, strong attraction force, no energy consumption, continuous work and simple operation. This series which is designed as per the standard of series TD-75 can satisfy customer’s need of high magnetic induction and deep removing and now are widely applied in metallurgy industry, abrasive industry, corundum industry, nonmetal ore industry, refractory industry, mine industry, food industry, building material industry and etc.
Overall Dimension Drawing

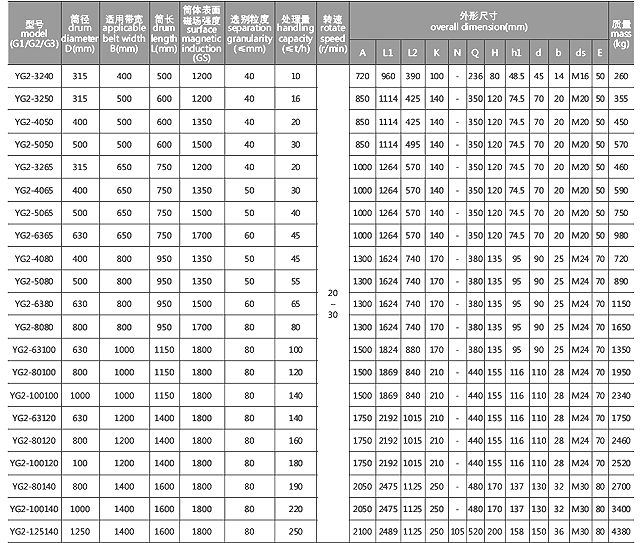

Main Techincal Data
