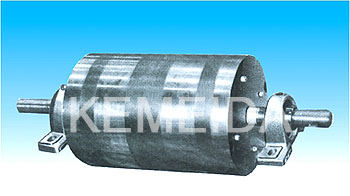

YG2 Half magnetic permanent magnet wheel (Half Magneitc Power)
Permanent-magnet wheel series YL1, are also called magnetic pulley or dry type large separator, adopts high-performance hard material featuring high magnetic induction, simple structure, convenient, maintenance-exempt, no energy consumption, no demagnetization and are widely applied in cement industry, magnetic separation industry, ore industry, steel industry, chemical industry, refractory industry, rubbish treatment industry and etc. It can be used as driving wheel when combined with DT-75 or AD-80 general fixed type belt conveyer, and also can match special belt conveyer.

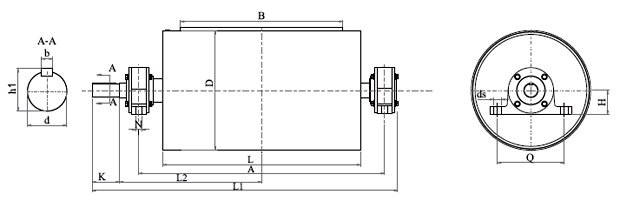

Overall Dimension Drawing

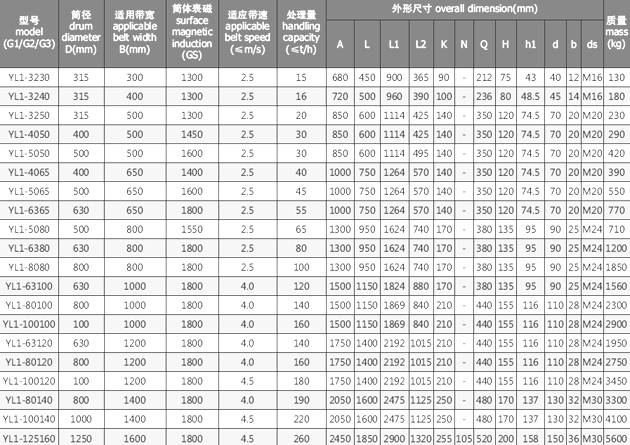

Main Techincal Data
remark: The drum surface magnetic induction is also provided with G1=2500Gs,G2=3000Gs and G3=3500Gs. If you have special requirements, please let us know and we will design it specially to meet your demand. The weight of series G1 to G3 products is 40% ~30% lighter than the value listed in the table.
